Important Skills

 Sorting, cleaning, and organizing data is essential for efficient analysis and visualization. To begin, open the attribute table of the dataset. Identify the attribute that will be displayed on the map. Once identified, sort the respective column to streamline the data. Next, filter out unnecessary information. Delete data points outside the project's scope, such as prices beyond $0-$50k. This ensures that only relevant data is retained for analysis.  Remove any entries lacking data to maintain accuracy. By following these steps, the data becomes more manageable and conducive to meaningful insights and visualizations

 To create a geodatabase in ArcGIS Pro, start by accessing the Catalog pane within the application. If the Catalog pane is not already open, navigate to it. Right-click either "Databases" or a folder under "Folders" in the Catalog pane, then select "New File Geodatabase." On the ensuing dialog box, browse to the desired location for the geodatabase, provide a name, and click "Save." This action generates a file geodatabase at the designated location, automatically integrating it into the project under "Databases" in the Catalog pane. Alternatively, utilize the "Create File Geodatabase" geoprocessing tool, accessible through search or directly from the Workspace toolset of the Data Management toolbox. Specify the folder location, assign a name, and choose the desired ArcGIS version for the geodatabase. Execute the tool, and a file geodatabase will be generated at the specified location. This process empowers users to create structured data repositories compatible with various ArcGIS releases, facilitating efficient data management and sharing across different platforms and users.

To georeference in ArcGIS Pro, start by adding reference layers with map coordinates, which can include raster, feature class, or basemap data. Import the raster dataset you intend to georeference, preferably adding it after the reference layers to avoid setting the map frame coordinate system manually. With the target layer selected in the Contents pane, zoom to it, then select the source raster layer you wish to georeference. Access the Georeference tab under the Imagery tab. In the Prepare group, set the spatial reference system if needed. Navigate to the location of your source raster and fit it to display. Utilize Move, Scale, and Rotate tools as necessary for precise placement. Turn off any irrelevant layers in the Adjust group before adding control points. Create control points by selecting corresponding locations on the source and target layers. Choose a transformation method based on your needs, then review the control point table to assess residual errors and make adjustments as necessary. Finally, save your georeferencing information in the desired format from the Save group when satisfied with the alignment.

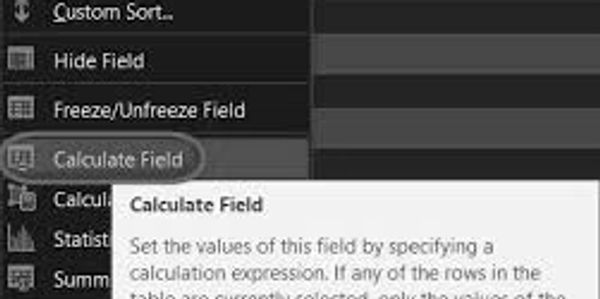

To extract zip codes using the Field Calculator in ArcGIS Pro, follow these steps. First, create a new field in the attribute table where you want to store the extracted zip codes. Then, open the Field Calculator and choose to calculate the new field. Create a Python script to extract the zip codes from the address field. In the script, specify instructions to grab the last digits from the address field. Additionally, include commands to remove any numbers following a dash if applicable. Ensure to include conditions that prevent the input of a value if there is no zip code present in the address field. By executing this script, the Field Calculator will systematically extract zip codes from the specified address field, providing accurate and standardized data for further analysis and visualization in ArcGIS Pro.

Using my project as an example for geoprocessing and extract zip codes in ArcGIS, start by selecting attributes where there is no value in the created Zip code field using the Select by Attributes tool. This step ensures that only features lacking zip code information are targeted for processing. Next, run the previously created Python script on the selected features to extract zip codes from the address field. This script captures the last digits of the addresses, removes numbers following a dash, and ensures no value is input if there is no zip code present. Once zip codes are extracted, the final step involves joining the zip codes from the original dataset to the corresponding zip code data for Minnesota (MN) using the Join tool. This process enhances the dataset with accurate zip code information, facilitating comprehensive spatial analysis and visualization within ArcGIS

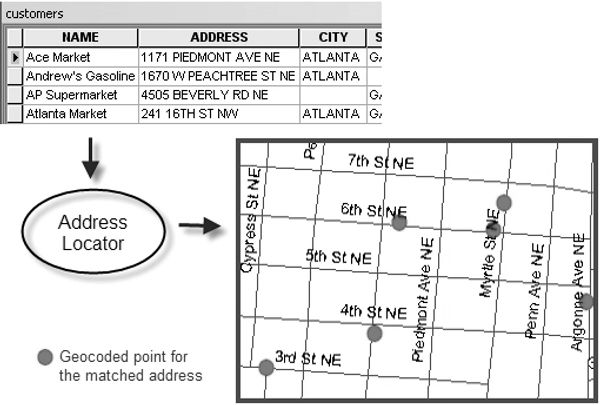

 To geocode a table of addresses in ArcGIS Pro using the Geocode Table pane, begin by adding the table containing the addresses to the map. Expand the Add Data drop-down menu on the Map tab and click Data, then browse to the desired table and double-click to add it to the map. Open the Geocode Table pane and initiate the guided workflow by right-clicking the table in the Contents pane and selecting Geocode Table. Follow the guided workflow steps, starting with confirming the correct input table and specifying the number of fields to geocode. Next, choose the input locator for geocoding and map the fields in your table to corresponding fields in the locator. Review and confirm the field mappings. Proceed to specify the output location and name for the geocoded data, optionally selecting preferred location types and output field options. Optionally, limit geocoding by country if applicable. Click Next to progress through each step of the workflow until all necessary settings are configured. Finally, review the summary and click Finish to complete the geocoding process. This comprehensive workflow ensures accurate and efficient geocoding of addresses within ArcGIS Pro, providing spatially referenced data for analysis and visualization

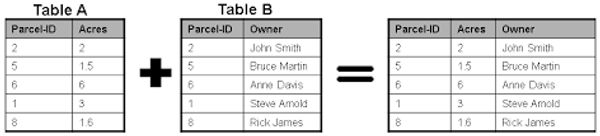

 To execute a join field operation in ArcGIS Pro, you'll need to match records between an Input Table and a Join Table based on the values of specified fields. These fields are typically referred to as the Input Join Field and Join Table Field. The Input Table can be a feature class or a table, and all fields in it will be retained during the join. Optionally, you can select specific fields from the Join Table to append to the Input Table during the join operation using the Transfer Fields parameter. The Join can be based on text, date, or number fields, with text fields being case sensitive. Different number formats can be joined as long as the values are equal. It's important to note that if a join field has the same name as a field from the input table, the joined field will be appended with a suffix to make it unique. Additionally, you can use actions such as Concatenate, Sum, Mean, and others to merge values from input fields into a single output field. The Validate Join tool can be used to ensure the integrity of the join, and indexing the input field and join field can improve performance. These parameters and options provide flexibility and control over the join process, ensuring accurate and efficient data integration in ArcGIS Pro

Once again using one of my projects as an example, To perform a join table operation in ArcGIS Pro, first, create two separate feature layers representing the 2015 and 2050 population data. Make a third copy, which combines both datasets. Add them together and ensure the data is cleaned, preferably in Excel, to remove any inconsistencies. Next, open the Attribute Table of one of the feature layers. Calculate the field for percent change by subtracting the 2050 population from the 2015 population, dividing the result by the 2015 population, and multiplying by 100 to obtain the percentage change. Now, in ArcGIS Pro, right-click a feature layer in the table of contents and choose Properties to open the Layer Properties dialog box. Navigate to the Joins & Relates tab and click Add in the Joins section. This opens the Join Data dialog box where you can select the field in the layer that the join will be based on, typically the ObjectID. Then, choose the table to join from the list and select the field in the table to base the join on, usually the ObjectID as well. With these steps completed, you have successfully created a join from the schematic feature class to the real GIS feature class, enabling further analysis and visualization of the combined population data.
